SolvisStrato
The thermal heat manager
A$6310.77

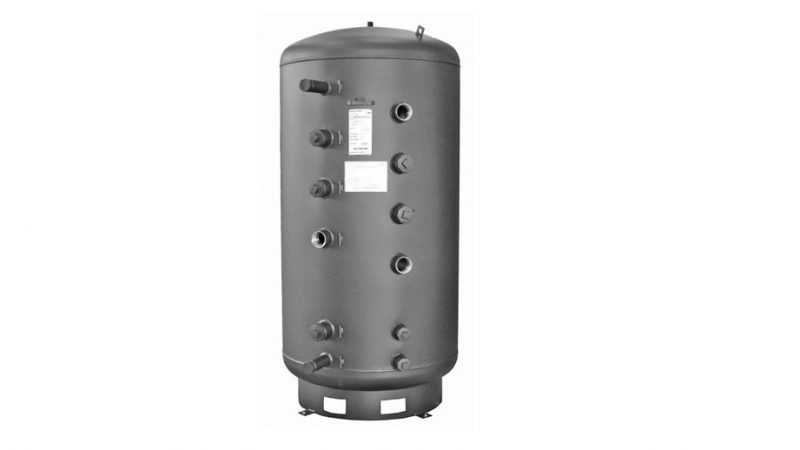

SolvisStrato
Stratified buffer tank with sensor cable harness for the storage of thermal energy at various temperature levels, including insulation. Developed to store the thermal output of one or more heat generators and to cover the thermal requirements of several heat consumers. Ready for on-site connection to:
• one or more conventional heat generators
• a solar energy system via an integrated solar stratified charger
• a combined heat and power plant
• one or more heating circuits
• a hot water or fresh water station
• a primary side circulation line
Description:
The SolvisStrato stratified buffer tank was specially developed for the SolvisDirekt and SolvisVital systems and serves as the central component of the heating facility. It is a universal thermal energy manager that is also future proof.
Technical Specifications of the SolvisStrato Stratified Buffer Tank:
SR-727 | SR-917 | SR-1427 | SR-1817 | |
Net volume | 720 l | 908 l | 1424 l | 1813 l |
Max. operating pressure | 6 bar | |||
Diameter | 790 mm | 1000 mm | ||
Diameter with insulation | 1010 mm | 1220 mm | ||
Tilt height | 1738 mm | 2109 mm | 2140 mm | 2620 mm |
Height with insulation | 1810 mm | 2200 mm | 2225 mm | 2725 mm |
Total weight (empty) with insulation | Approx. 140 kg | Approx. 180 kg | Approx. 185 kg | Approx. 230 kg |
Total weight (filled) | Approx. 860 kg | Approx. 1090 kg | Approx. 1610 kg | Approx. 2050 kg |
