Heating Station
for SolvisStrato
A$1921.44

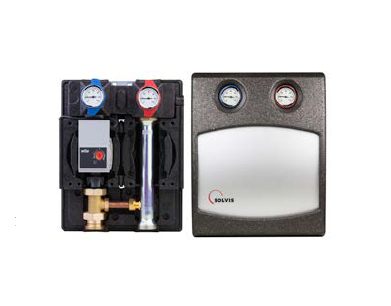

Heating Station:
Wall-mounted pumping group for connecting a mixed heating circuit to a SolvisStrato stratified buffer tank. With 3-way mixing valve and high-efficiency heating circuit pump. The unit is supplied completely pre-assembled and insulated.
Comprising:
• Supply and return lines with ball valve and thermometer
• Supply line ball valve with thermowell and gravity brake
• High-efficiency pump in the heating supply line
• Actuator-driven 3-way mixing valve
• Insulating cover
• Wall mount and fasteners
The controlled heating station is used to connect a heating circuit with a variable supply temperature. The temperature is adjusted automatically via an actuator-driven 3-way mixing valve. No. 22648, this heating station with 4-way mixer is used to connect two heating circuits at different temperature levels. The supply line of the lower temperature heating circuit, e.g. an underfloor heating system, is supplied directly from the return line of a higher temperature heating circuit, e.g. a radiator heating system. The further cooling of the return line thereby achieved increases the overall efficiency of the system.
Technical Specifications of the Heating Station:
HKS-G-2,5 | HKS-G-6,3 | HKS-G-18.0 | HKS-4W | |
Recommended range of application | 0.3 - 0.8 m³/h | 0.8 - 1.5 m³/h | 2.0 – 4.0 m³/h | 0.8 - 1.5 m³/h |
Dimensions (W x H x D) | 300 x 370 x 245 | 550 x 515 x 245 | ||
Heating circuit high-efficiency pump | Wilo Strato PICO 25/1-6 | Grundfos UPML 32-95 auto | Wilo-Stratos PICO 25/1-6 | |
Mixing valve | 3-way motorised, Kvs value 2.5 | 3-way motorised, Kvs value 6.3 | 3-way motorised, Kvs value 18 | 4-way motorised, Kvs value 6.3 |
Servomotor | 3-point actuator, 230V | - | ||
Power consumption of the pump | 3 - 40 W | 3 - 40 W | 10 – 85 W | 3 - 40 W |
Heat conductivity | - | - | - | |
Plate heat exchanger | - | - | - | |
